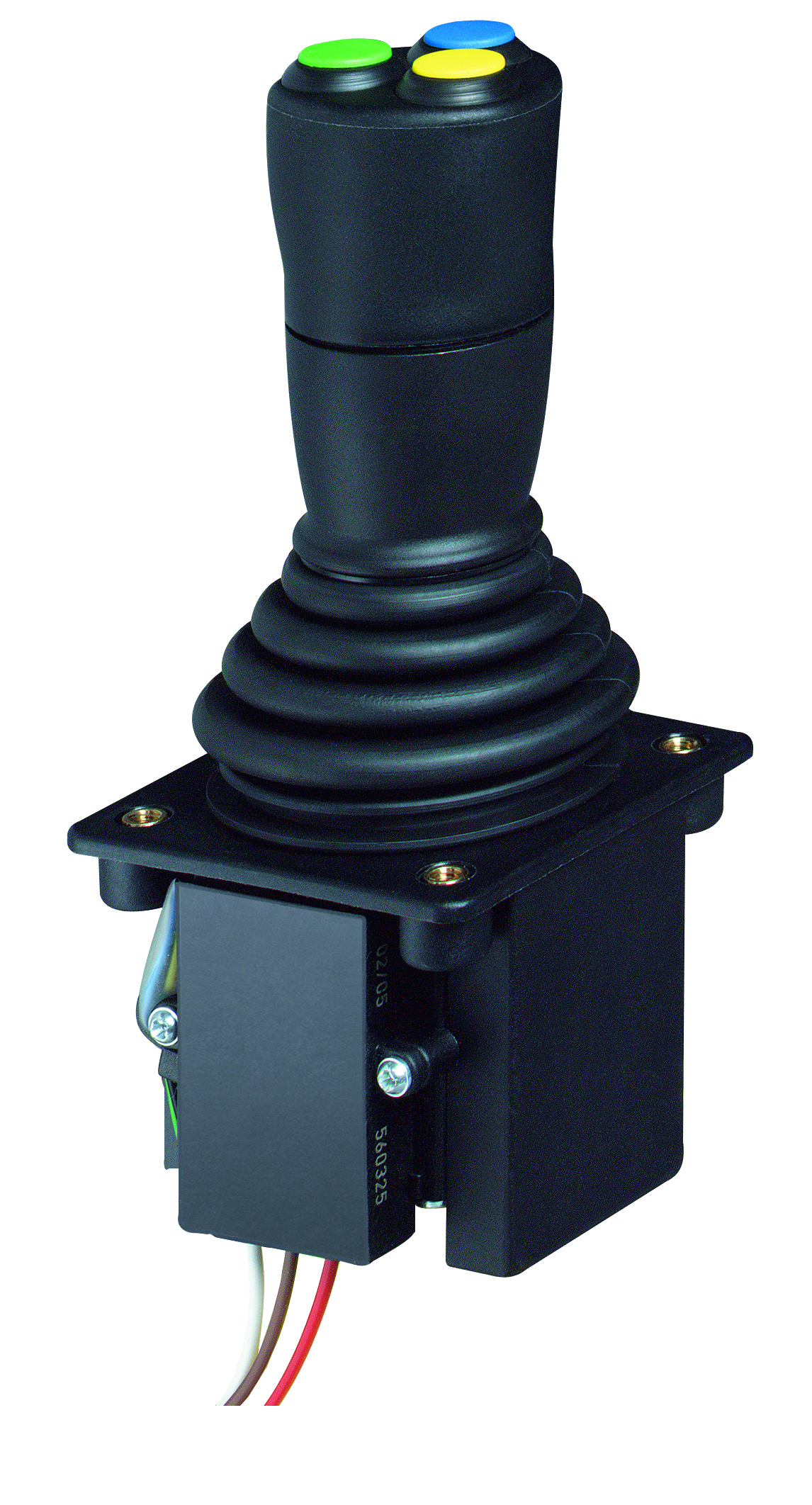

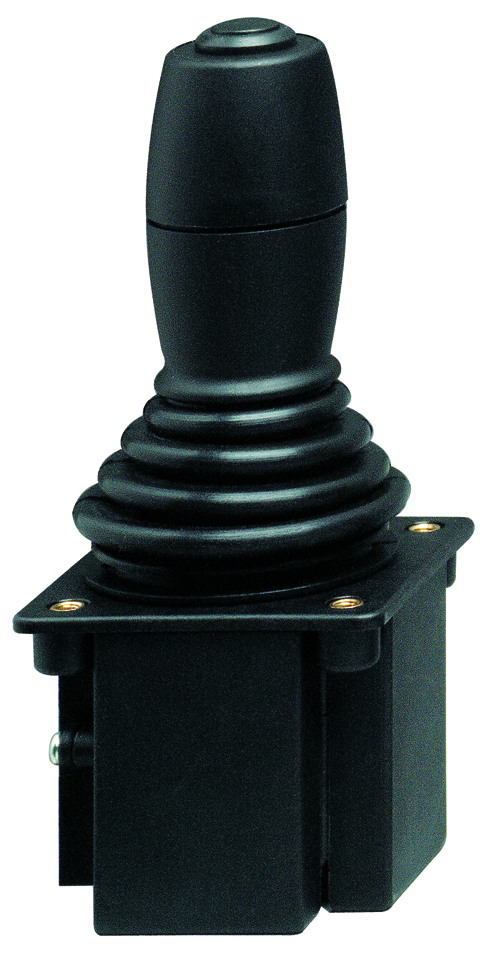

Compact joystick

With up to 3 push button switches, bottom mounted.

Compact joystick J2 is used effectively in tractors for front loader control or in industrial trucks for controlling the forks. Up to three push button switches integrated in the handle enable the operation of additional functions.

Product characteristics:

• Space-saving design
• High reliability and long service life thanks to contactless Hall-effect and reed technology
• Analogue output signal (current/voltage, also redundant) or switching output possible
• IP67 protection class of electronics, ideal for harsh environmental conditions
• Redundant electronics can be realised
• Temperature range -25°C to +85°C
• Deflection ±20°
• CAN-bus connection (CANopen / SAE J1939) available
• Available with various actuation types such as no detent / detent or centre position interlock
