Heavy duty joystick base

Project Description

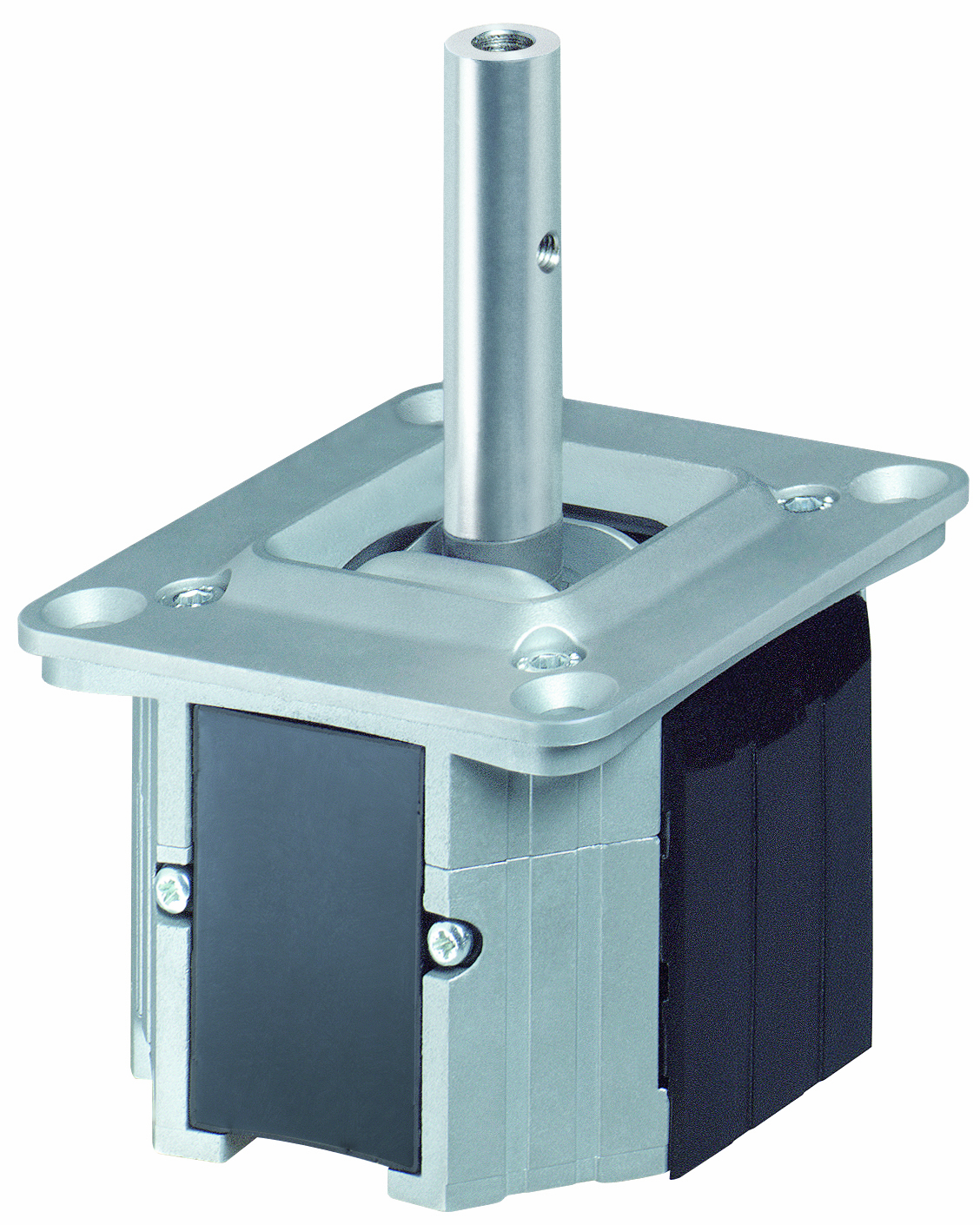

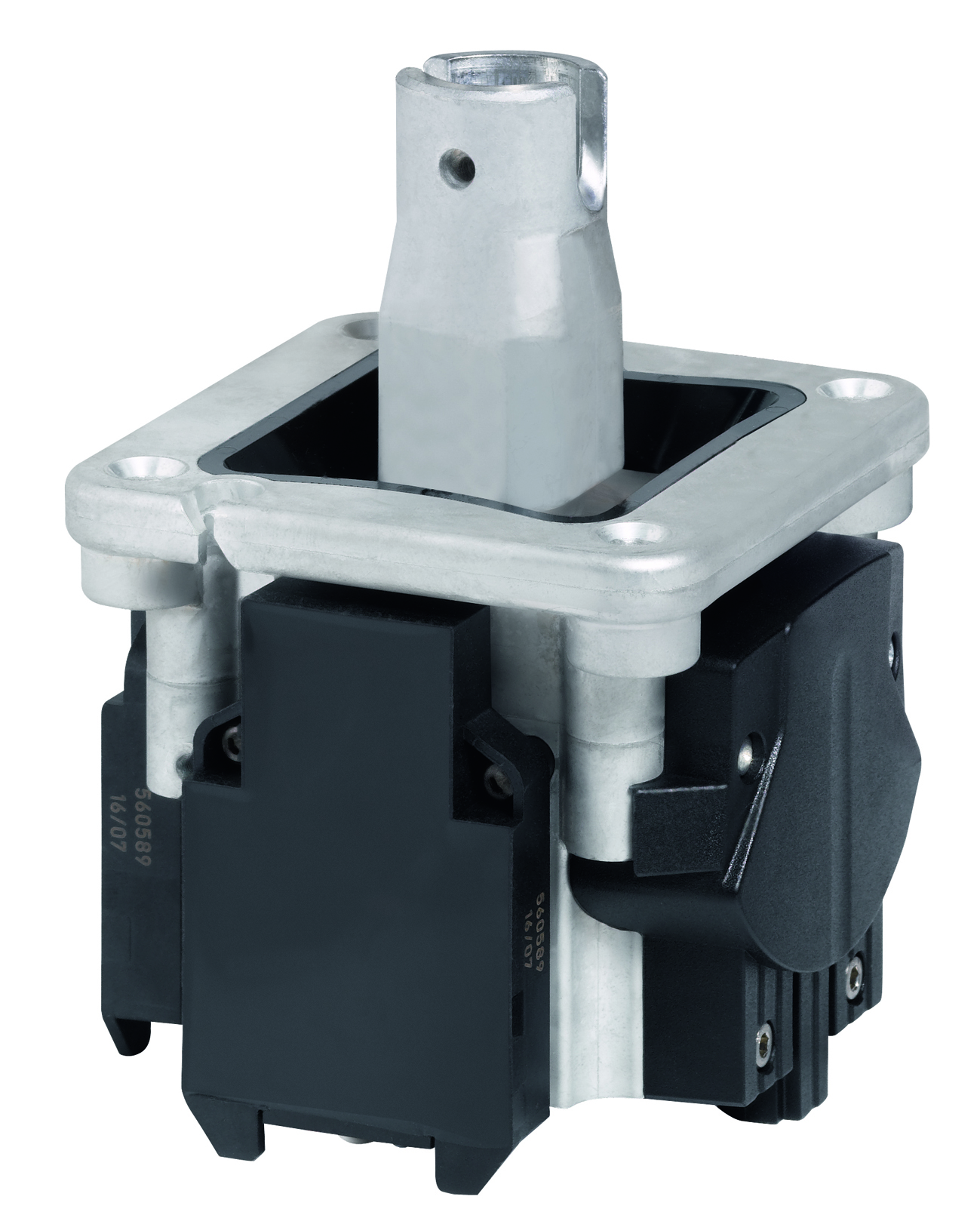

Heavy duty joystick base

Robust design Heavy duty joystick  is ideal for high-stress and high-frequency use

  • Contactless Hall-effect and reed technology
  • Analogue output signal (current / voltage, also redundant) or switching output possible
  • IP67 protection class electronics for harsh conditions also optionally available redundant
  • Temperature range: -40°C to +85°C
  • Various actuation types: no-detent, detent, with friction brake / centre position interlock.
  • Selectable actuation, both as single and as multi axis
  • CAN-bus connection (CANopen / SAE J1939 available)
  • Can withstand very heavy loads (x / y-axis 700N, Z – axis 2000N)
