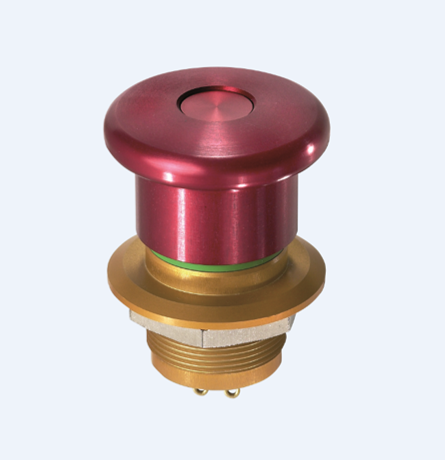

HEAVY – DUTY / MIL GRADE EMERGENCY STOP

ES Series

Metal product with dia. 22 mm bushing
Electrical function : push-pull ON-ON
2 and 3-pole configurations
Rugged version
Lower behind-panel depth
Sealed to IP65, IP67 and IP69K
Salt spray, Vibrations & Shock resistance
Robustness (axial) : IK10
Operating temperature : -40°C to +85°C
MATERIALS:
Case : diallyl phthalate (DAP)
Actuator : aluminium, red anodized
Bushing : aluminium, yellow anodized
Terminal seal : epoxy
Operating force : 2 pole models :
Push : 30N ± 7N
pull : 25N ± 5N
