Project Description

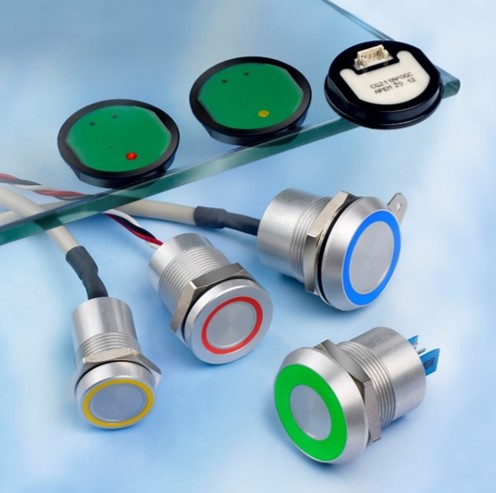

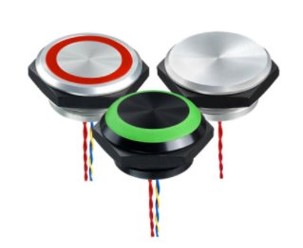

PBA series – Piezo & Capacitive switches
- Bushing diameter 16 mm, 19 mm or 22 mm
- Sealed to IP68 and IP69K
- Easy to clean metal surface
- Very long life expectancy
- Ring or dot illumination
- Operating temperature : -40°C to +75°C
- Terminals: Flying leads, Cable, Straight PC
- Electrical function: NO (pulse), NC (pulse), NO prolongated pulse, ON – OFF
- (requires external power supply)
- Ratings: 1A 24VAC/DC
- LED Color: Single, Bi- color, Tri-color
- Approved version to ATEX according to the ATEX 94/9/CE directive
